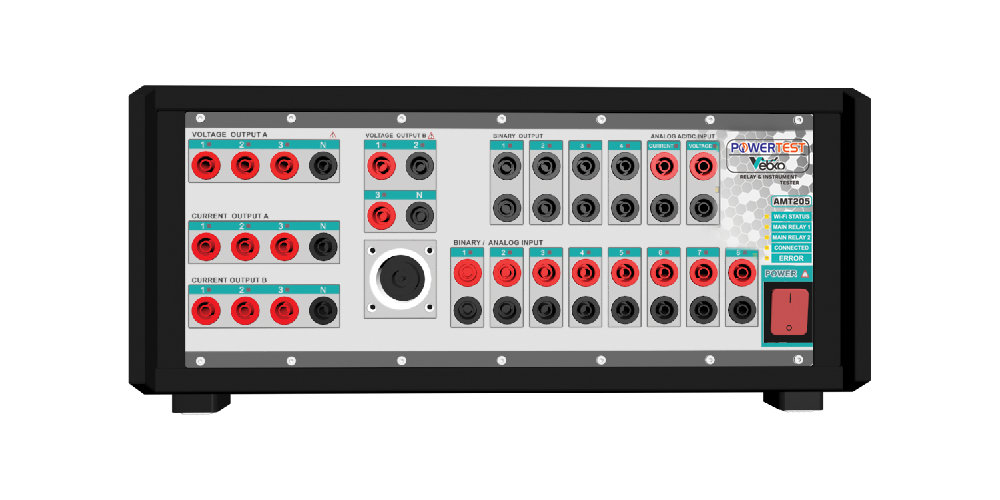

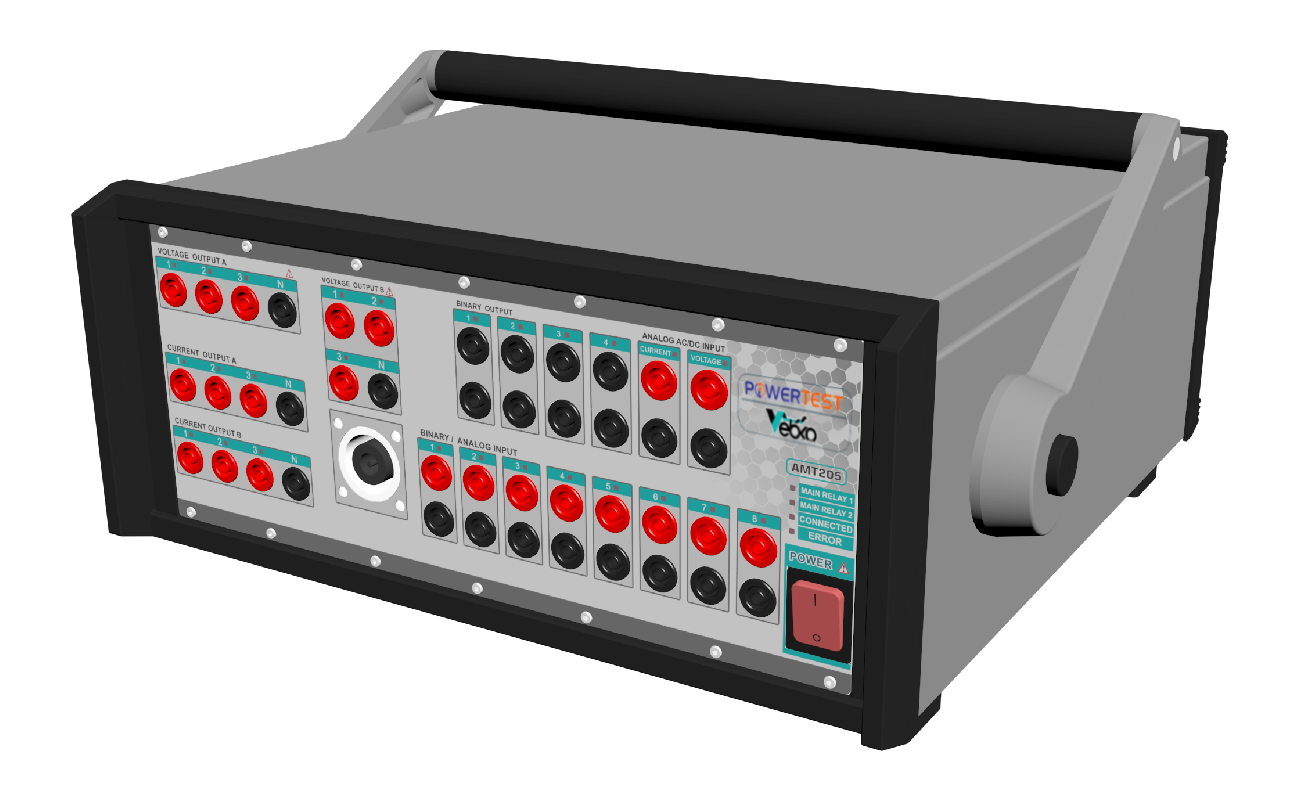

VEBKO AMT 205 Multifunction/Relay Testing Kit

Comprehensive Relay Test and Protection Equipment

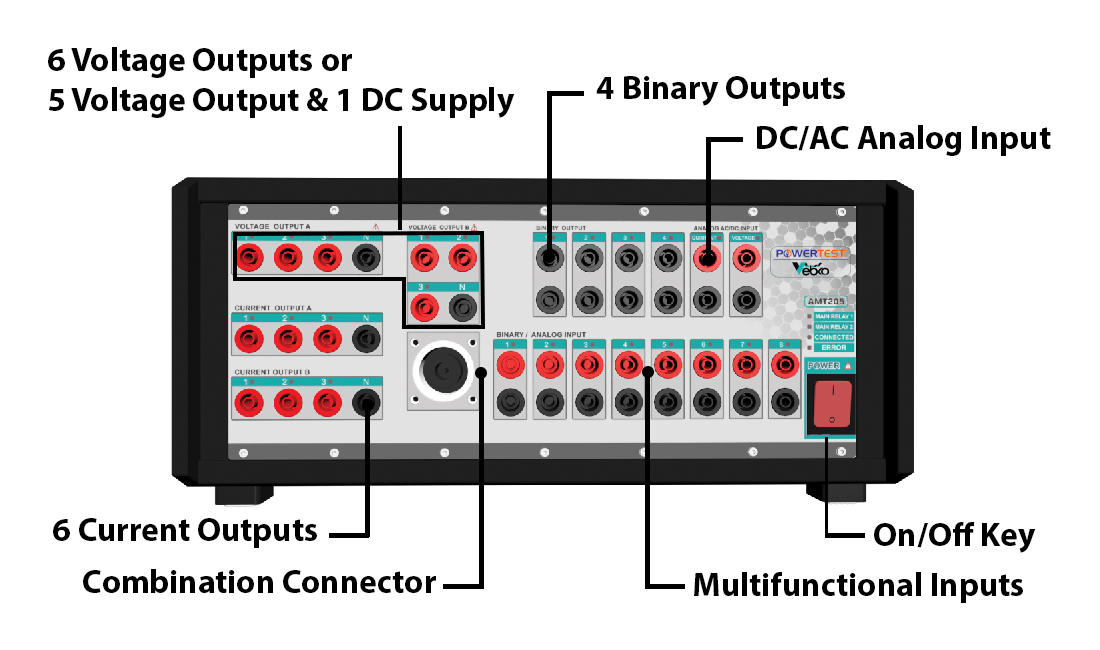

• Six 32A current sources (64A in 3PH mode, 128A in 1PH mode)
• Six 300V voltage sources (1200V in single-phase mode)
• Current and voltage combination cable
• 8 analog binary inputs
• 2 DC analog current and voltage inputs with high accuracy
• 4 binary outputs
• DC voltage sources (450V)

Software Specifications

• Capable of testing a wide range of electromechanical, static, and numerical relays
• Capable of reading, editing, and creating all XRio and Rio files
• Capable of transient testing
• Capable of point-to-point or end-to-end testing
• Built-in GPS and Wi-Fi
• Automatically performing tests
• Generating a comprehensive reports on tests
• Capable of automatically filling out the test sheets of different companies
• Compatible with Windows XP, 7, 8, 10
• Supports Android and iOS operating systems
• Autosave, Redo and Undo options
• PDF Help File in English
• Using Bootloader technology to update Firmware
• A host of instructional videos

Testing of All types of Protection Relays

• Testing of Electromechanical, Static, and Numerical Protection Relays.
• Testing of All functionalities like Differential, Distance, Busbar, Generator, Motor, etc.  Protection Functionality Test,
• Testing of GOOSE Message, End to End GPS-based testing.
• Automatic Templates for Repetitive testing work.
• Testing with Xrio, RIO file upload.

Testing transducers and meters

• Highly precise in testing transducers and meters
• Equipped with a pulse counter to automatically read energy

Testing Voltage Transformers and Capacitor Voltage Transformers(VT/CVT)

• Secondary Burden
• Short-Circuit Impedance
• Resistance
• Excitation
• Ratio

Testing Voltage Power Transformers

• Winding resistance
• Ratio (TTR)
• No-Load Current
• Vector group
• Magnetic balance
• Tap changer continuity
• Demagnetizing

Capable of Testing Current Transformers(CT)

• Excitation (Saturation)
• Hysteresis curve
• Ratio using current or voltage
• Polarity using current or voltage
• Phase error
• Winding resistance
• Secondary burden

Testing Circuit Breakers(CB) and Isolators

• Testing the opening and closing time
• Contact resistance measurement
• Minimum power voltage

Testing Cable Resistance

Testing RTD
